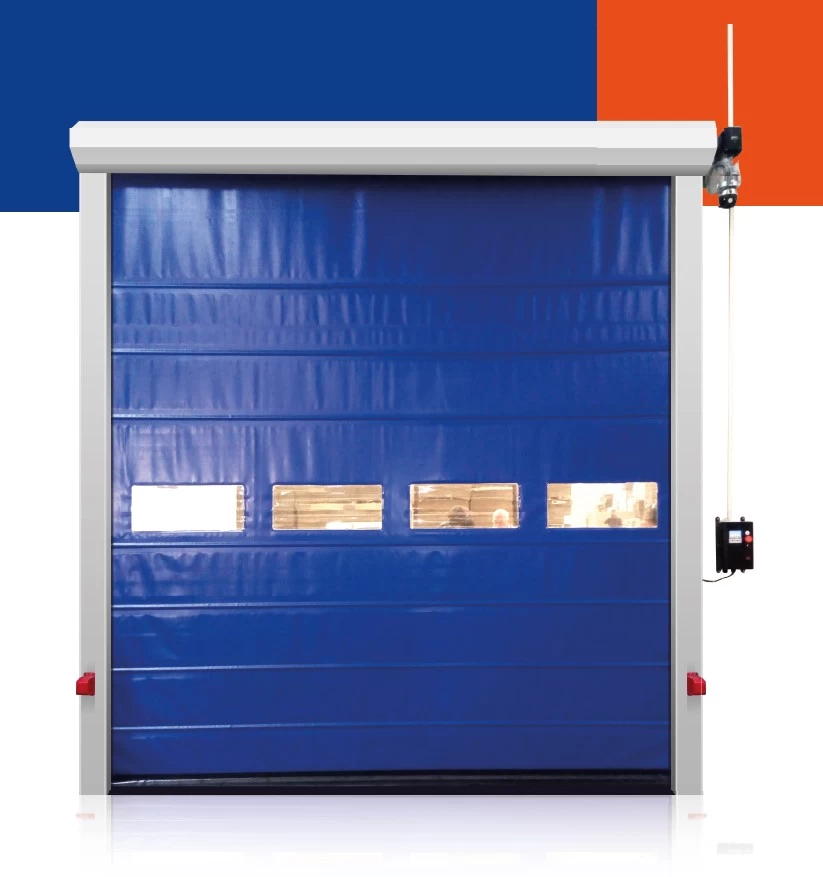

SPIRAL TYPE HIGH SPEED PVC DOOR TECHNICAL SPECIFICATIONS

PVC Tarpaulin

0,8 MM 900 GR/M2 PANAMA 1100 DTEX MEHLER (MADE IN GERMANY )

RAILS AND MECHANISM

ALUMINUM SPRINGS WITH DOUBLE SEAL SYSTEM

MECHANISM INTERNAL PARTS

3-4-5 MM LASER CUT SPECIAL DESIGN GALVANIZED

GASKETS AND Wicks

SPECIAL DESIGN EPDM GASKETS

WIND SUPPORT BARS

FULL SHAFT USED ACCORDING TO DOOR DIMENSION

Wind resistance

VARIES DEPENDING ON DOOR SIZE. MAXIMUM: 40 KM/H

ENGINE

DEPENDING ON DOOR SIZE 0.75 - 1.1 KW 380 V SWITCH TYPE COMPACT MOTOR MANUAL OPENING LEVER STD.

Reducer

63-75-80 BODY ALUMINUM

Break

220 VDC ELECTROMECHANICAL DEPENDING ON MOTOR SIZE

CONTROL UNIT

CONTROL UNIT WITH ENGLISH MENU AND SCREEN

LIMIT SWITCH

DIRECTLY COUPLED TO THE ENGINE

DOOR WORKING SPEED

0.7 M/S (S), 1.5 M/S (O)

OPENING ALTERNATIVES

"REMOTE CONTROL (O), UP(O), METAL MASS DETECTOR(O), drawstring switch

OPERATING FUNCTIONS

OPEN - STOP - CLOSE AND 1 EXTRA BUTTON STANDARD

ADJUSTABLE FEATURES

AUTOMATIC OFF TIME, MAINTENANCE SCHEDULE, ETC.

SAFETY SYSTEMS

SAFE IN REFLECTION , PHOTOELECTRIC CELL (S) , CURRENT LIMITATION , WIRELESS BOTTOM SAFETY , MOTION PHOTOCELL
